Book Tuck End Boxes That Open Like a Cover

What is a book tuck end box?

It is a carton built around the way a book opens. The box is shallow and wide, the lid is joined along one long side, and it swings open in a single movement.

A tuck flap on the front edge of the lid slides down inside the front wall to close it. Small dust flaps at each end of the lid fold in underneath to keep the corners neat.

It is a close relative of the standard tuck top box with a hinged lid. The difference is the shape: book tuck cartons are much flatter and open along the long edge.

What do the four photos show?

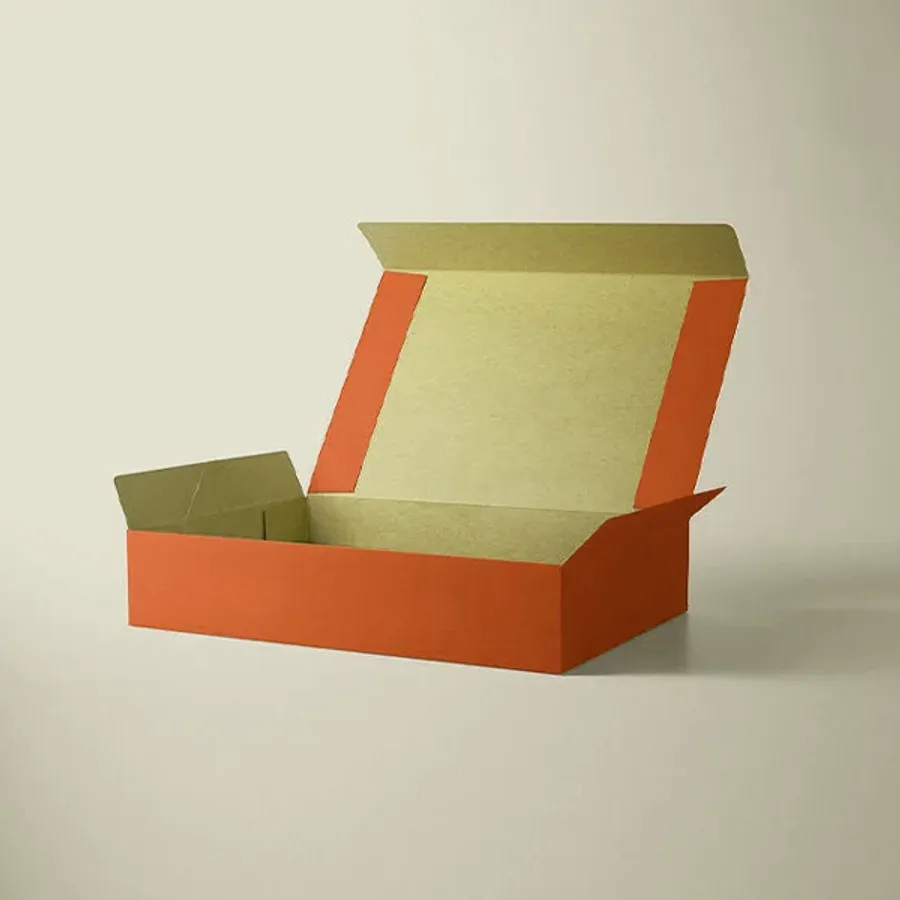

The orange carton is open, with an olive inside that contrasts with the bright outside. You can see the lid hinged on the back edge and the front tuck standing up.

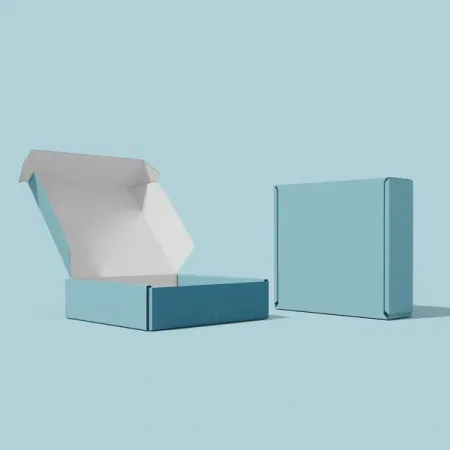

The pale blue pair shows one carton open and one closed and stood on its edge. Closed, it looks like a book on a shelf.

The two kraft photos show a closed box with small locking slots on the sides, and a shallow tray resting on a flat box. All four are sample designs.

Who uses book-style tuck cartons?

Anyone with a flat product that should be opened slowly and seen at once. The wide lid reveals the whole product in one go.

• Notebook, diary and planner makers
• Small publishers boxing a special edition
• Sock and accessory brands sending a folded pair
• Illustrators selling print sets and card packs
• Gift shops boxing flat items such as scarves or tea towels

How does the book lid stay closed?

Three things work together. The front tuck slides inside the front wall and is held by friction. The dust flaps at each end of the lid sit inside the side walls. On some designs, small tabs on the lid lock into slots in the walls, as the closed kraft box in our photos shows.

Side walls are usually folded double. That gives a neater top edge and a stiffer wall for the tuck to press against.

If the box will be opened often, ask for a thumb notch on the front wall. It gives the customer a place to lift the lid.

What size book tuck box do I need for an A5 notebook?

An A5 notebook measures 210 × 148 mm. Add 5 mm to each of those so the book drops in and lifts out easily, which gives about 215 × 153 mm. Rounding up to 220 × 155 mm leaves room for a ribbon or a band.

For the depth, measure the closed notebook and add 3 to 5 mm. A 20 mm notebook suits a 25 mm deep box; a thick planner may need 30 mm or more.

The guide to measuring a tuck box for clearance covers depth in more detail.

Board and print for book tuck boxes

Our default board here is 350gsm white SBS. Kraft, or something else, can be requested. Kraft gives the natural brown look in two of our photos; white SBS gives brighter colour.

A book box has two big print areas: the outside of the lid and the inside. Many brands put a bold design on top. A few words printed under the lid then greet the customer as it opens.

Our notes on choosing board for a tuck box compare the look and feel of each board.

Which finishes suit a book-style lid?

The lid is a large flat panel, so finishes have room to work. A foil title across the middle reads like a book cover. Embossing a pattern or a crest adds texture.

Soft touch lamination feels good under the hand and suits a box that is opened slowly. Spot UV on a single motif gives a subtle shine against a matt background.

All of these are options and appear on your quote as separate lines.

How do book tuck boxes pack and post?

Each one comes to you as a flat blank. Fold in the double side walls, tuck the end flaps, lay in the product and close the lid with the front tuck.

A flat carton like this stacks well, which makes storage simple on a shelf or in a drawer. Keep the flat blanks under something level until you fold them, so the long lid panel stays true.

For posting to customers, slip the box into a mailer or a stiff envelope. The printed carton is what they open; the outer layer takes the bumps on the way.

Which mistakes are easy to make?

Book boxes are simple, but a few slips come up again and again. Each one is cheap to fix on a proof and costly to fix after printing.

• Sizing to the paper size and forgetting the book's cover overhang
• Making the box too deep, so the product slides about
• Printing the inside message upside down relative to how the lid opens
• Putting key text on the folded side walls, where it is split by a fold
• Choosing a deep, narrow product for a book box when a tuck top suits it better

How do I order book tuck end boxes?

Give us the product size and we price the carton in writing. It starts from £0.25 per unit; size, board and run length decide the final figure. Tell us if you need an inside print or a thumb notch. You can ask for a book tuck box price and then follow the steps.

1. Measure the flat product, or send its paper size and thickness.
2. Choose the board, the lid finish and any inside print.
3. Send your artwork or logo; our designers fit it onto the dieline for free.
4. Approve the proof, checking the lid design reads the right way up.
5. Production takes 4–6 business days; delivery is free, tracked and 2–3 business days to a UK address.
